Low-Temperature Cure Powder Coatings
Low-Temperature Cure Powder Coatings
This series of products is primarily based on epoxy resin and curing agents, featuring excellent physical, chemical, and decorative properties as a thermosetting low-temperature curing powder coating.
This series of products is primarily based on epoxy resin and curing agents, featuring excellent physical, chemical, and decorative properties as a thermosetting low-temperature curing powder coating.
Powder Properties
Powder Properties
· Specific gravity: 1.2~1.8 g/cm³
· Particle size: average particle diameter generally 30~38 µm, with >99% of particles <66 µm. Please specify any special requirements in advance.
· Flowability: Exhibits good fluidization and transport properties; fluidization index available upon request from the company.
· Storage stability: Can be stored at <25°C for up to one year.
· Specific gravity: 1.2~1.8 g/cm³
· Particle size: average particle diameter generally 30~38 µm, with >99% of particles <66 µm. Please specify any special requirements in advance.
· Flowability: Exhibits good fluidization and transport properties; fluidization index available upon request from the company.
· Storage stability: Can be stored at <25°C for up to one year.
Coating Performance
Coating Performance
Coating Performance
Appearance
Visual inspection
Multiple surface effects
Acid
resistance
5%H₂SO₄
1 Year
Color stability, Blister resistance.
48%HCL
1 Month
5%HAC
1 Year
5%H₃PO₄
1 Year
Alkali
resistance
5%NaOH
30 Days
5%NaCO₃
Appearance
Visual inspection
Multiple surface effects
Solvent
resistance
Acetone
Brush
50 times.
Color stability, Blister resistance.
Xylene
Methyl ethyl ketone (MEK)
Gasoline
Alcohol
Ethyl acetate
Particle Size Distribution Graph
Particle Size Distribution Graph
Particle Size Distribution Graph

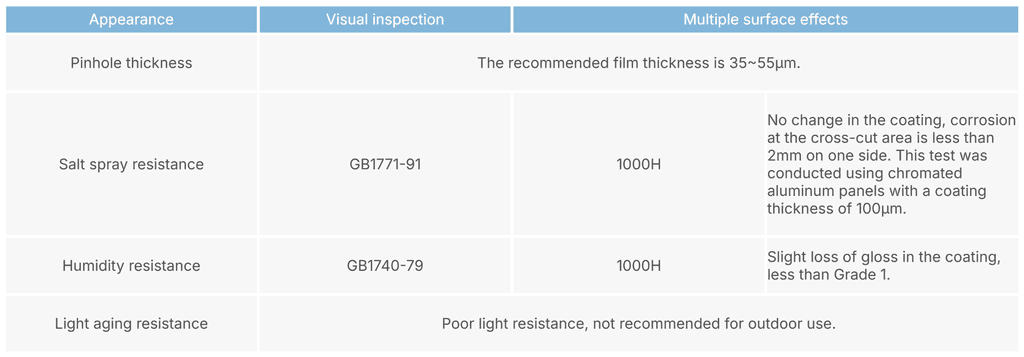

Appearance
Visual inspection
Multiple surface effects
Pinhole thickness
The recommended film thickness is 35~55µm.
Salt spray resistance
GB1771-91
1000H
No change in the coating, corrosion at the cross-cut area is less than 2mm on one side. This test was conducted using chromated aluminum panels with a coating thickness of 100μm.
Humidity resistance
GB1740-79
1000H
Slight loss of gloss in the coating, less than Grade 1.
Light aging resistance
Poor light resistance, not recommended for outdoor use.
Application Conditions
Application Conditions
● Pre-treatment
Steel Phosphating
Note: Pre-treatment inspection should be conducted every 4 hours. The inspection method should follow the requirements of the chemical supplier or the company's pre-treatment instructions.
Steel Phosphating
Note: Pre-treatment inspection should be conducted every 4 hours. The inspection method should follow the requirements of the chemical supplier or the company's pre-treatment instructions.
Steel Phosphating
Note: Pre-treatment inspection should be conducted every 4 hours. The inspection method should follow the requirements of the chemical supplier or the company's pre-treatment instructions.
● Coating Application
This product series is suitable for the following application methods:
This product series is suitable for the following application methods:
· Corona electrostatic spray
· Tribo electrostatic spray
· Electrostatic fluidized bed coating (upon request)
· Fluidized bed dip coating (upon request)
· Other coating methods (upon request)
· Corona electrostatic spray
· Tribo electrostatic spray
· Electrostatic fluidized bed coating (upon request)
· Fluidized bed dip coating (upon request)
· Other coating methods (upon request)
Note: Coating quality inspection should be performed at least every two hours. The inspection method should follow customer requirements and the company's film inspection procedures.
Note: Coating quality inspection should be performed at least every two hours. The inspection method should follow customer requirements and the company's film inspection procedures.
● Curing Conditions
120°C / 20 minutes.
120°C / 20 minutes.
120°C / 20 minutes.
This product series is suitable for the following curing methods:
This product series is suitable for the following curing methods:
This product series is suitable for the following curing methods:
· Electric heating
· Radiation heating
· Infrared heating
· Oil or gas-fired heating (prior consultation recommended)
· Electric heating
· Radiation heating
· Infrared heating
· Oil or gas-fired heating (prior consultation recommended)
· Electric heating
· Radiation heating
· Infrared heating
· Oil or gas-fired heating (prior consultation recommended)
Note: Oven temperature should be checked regularly, with inspections conducted weekly.
Note: Oven temperature should be checked regularly, with inspections conducted weekly.
Note: Oven temperature should be checked regularly, with inspections conducted weekly.
Additional
Additional
● Application Areas
Cookware, instrument housings, electromechanical equipment, indoor furniture, automotive components, and other scenarios requiring low-temperature curing.
Cookware, instrument housings, electromechanical equipment, indoor furniture, automotive components, and other scenarios requiring low-temperature curing.
Cookware, instrument housings, electromechanical equipment, indoor furniture, automotive components, and other scenarios requiring low-temperature curing.
● Special effects
Various wrinkle, metallic, pearlescent effects, and blended colors. For the use of coatings with special surface effects, please refer to our company’s usage guidelines.
Various wrinkle, metallic, pearlescent effects, and blended colors. For the use of coatings with special surface effects, please refer to our company’s usage guidelines.
● Packaging and transportation
25kg cardboard boxes with polyethylene plastic bag liners. Non-hazardous goods, can be transported by various methods, but should avoid direct sunlight, moisture, heat, and contact with chemical substances.
25kg cardboard boxes with polyethylene plastic bag liners. Non-hazardous goods, can be transported by various methods, but should avoid direct sunlight, moisture, heat, and contact with chemical substances.
25kg cardboard boxes with polyethylene plastic bag liners. Non-hazardous goods, can be transported by various methods, but should avoid direct sunlight, moisture, heat, and contact with chemical substances.
● Health and safety
This system does not contain TGIC. Please refer to our company’s safety, health, and environmental operation guidelines and request the "Safety Technical Report" from the company. For coatings used in toys, formulations must be pre-approved and carefully designed to ensure the absence of toxic elements, thereby safeguarding children’s health.
This system does not contain TGIC. Please refer to our company’s safety, health, and environmental operation guidelines and request the "Safety Technical Report" from the company. For coatings used in toys, formulations must be pre-approved and carefully designed to ensure the absence of toxic elements, thereby safeguarding children’s health.
This system does not contain TGIC. Please refer to our company’s safety, health, and environmental operation guidelines and request the "Safety Technical Report" from the company. For coatings used in toys, formulations must be pre-approved and carefully designed to ensure the absence of toxic elements, thereby safeguarding children’s health.
